How to Mount Your AKASO Camera on a Bike: use the handlebar mount

⚠️ Safety First!

• Always test stability before riding: Shake handlebars vigorously to ensure no movement
• Max speed limit: 25 mph (40 km/h) - avoid extreme off-road terrain
• Check mount weekly: Tighten screws and inspect for wear

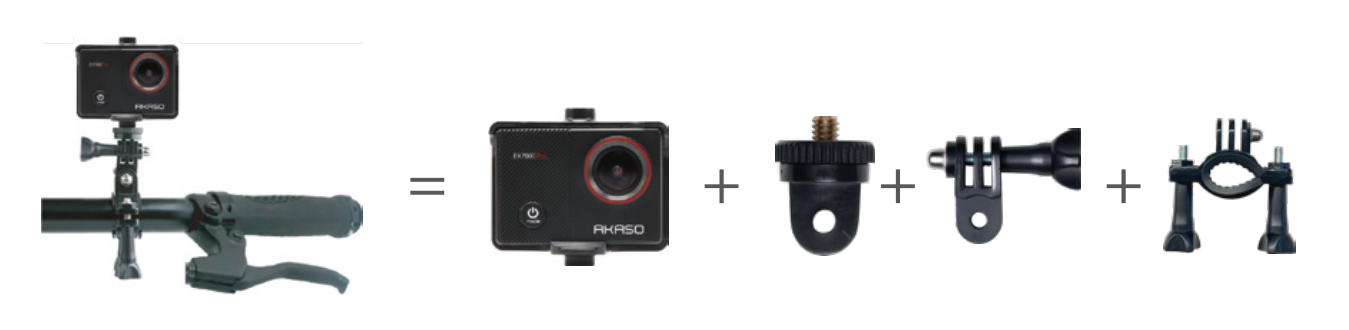

🚴 Method 1: Direct Mount (For Screw-Hole Cameras)

▶️ Video Tutorial: https://www.youtube.com/shorts/7IlLGBJa3ME

1. Attach A-bracket:

• Align the bracket with the camera's screw hole
• Tighten clockwise until snug

1. Secure to bike mount:

• Slide the A-bracket and D-bracket into the bike mount groove
• Lock lever firmly

1. Positioning:

• Handlebar: Center for balanced view
• Seatpost: Angle 15° upward

⚠️ Critical Check:

• No lateral wobble when shaking
• Lens clear of cables/obstructions

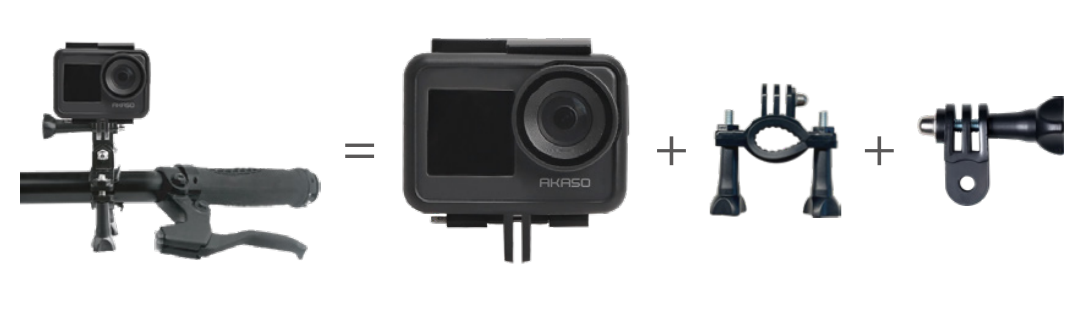

🚴 Method 2: Clip/Frame Mount (Non-Screw Cameras)

Option A: Using Frame/Clip

▶️ Frame Tutorial: https://www.youtube.com/shorts/y7fj7UqQpU8

1. Snap the camera into the frame/clip accessory
2. Mount to bike as in Method 1

Option B: Using a Waterproof Case

▶️ Waterproof Case Tutorial: https://www.youtube.com/shorts/Ai0Fj6JFIuY

1. Insert camera into the waterproof case
2. Secure case to D-bracket via tripod socket
3. Mount to bike

📐 Optimal Positioning Guide

Still having issues?
Contact support with:

• Camera model + mount photos

Questions? Click to email us: cs@akasotech.com
