How to Insert Battery & SD Card in Your AKASO Camera

Please follow the steps below to insert the battery and SD card into your camera.

🔋 Inserting the Battery

Follow these steps to avoid damage:

1. Open the battery compartment:

• ▶️ Slide-cover models: Push the cover downward until it unlocks, then slide open.
• ▶️ Flip-cover models: Press the latch and lift the cover upward.
  Slide-Cover Demo

     Flip-Cover Demo

1. Insert correctly:

• Align the battery’s gold contacts with the terminals in the compartment.
• Ensure the removable plastic tab faces UP (visible outside the camera).
• Gently push until it clicks into place.

⚠️ Critical Notes:

• NEVER force the battery – reversed insertion can damage pins.
• Keep the plastic tab intact – it’s essential for safe removal.

⚠️ Removing the Battery

• Pull the plastic tab straight out (never yank sideways).
• If the tab breaks:
  ① Apply a drop of strong glue to a toothpick, attach to battery edge, wait 1 min, pull gently.
  ② Use plastic tweezers – avoid metal tools (risk of short-circuiting).
• STOP if battery is swollen/damaged:
  → Contact AKASO Support immediately with order # and photos. Do not use!

💾 Inserting the SD Card

1. Check compatibility first:

   Card Type	Recommended Spec
   MicroSD	Class 10/U3/V30 or higher
   Capacity	varies by model - check manual（All can support 64GB SD card.）


    Insert properly:

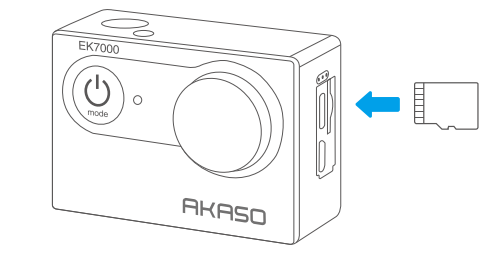

   • Match the card’s notch to the slot’s groove (see diagram below).



• Push gently with your nail until it clicks and sits flush.
  1. First-use essential:
  • Power on the camera → Go to Settings > Format SD Card.

  • Or you can format the SD card in the computer

    How to format the SD card? How to Format the SD Card?

    Camera shows SD card error/slow? SD card Error or Spped Slow?
