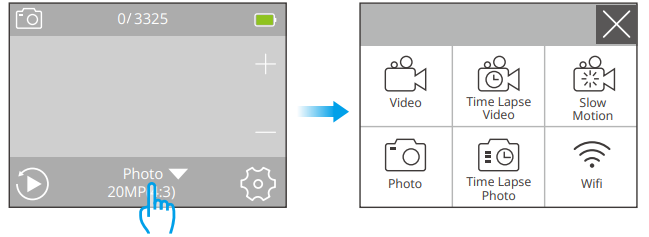

There are 6 modes of this camera: Video, Time Lapse Video, Slow Motion, Photo,
Time Lapse Photo, and Wifi.
- Video Mode
Video Mode is the default mode when the camera is turned on. When the camera is in Video mode,
press the Shutter button to start or stop recording videos. The indicator light will flash while recording. - Time Lapse Video Mode
In Time Lapse Video Mode, when you press the Shutter button, the camera will record videos at 30 frames per second, using images captured at specific intervals to create a seamless and high-quality time-lapse effect. - Slow Motion Mode
The camera is capable of recording videos at specific resolutions and zoom levels. For instance, if you select the option 2.7K 2X to shoot a video that lasts for a minute, the camera will generate a 2-minute slow-motion video at 2.7K resolution. This mode is ideal for capturing fast-moving scenes with greater clarity. - Photo Mode
Press the Mode button to switch to Photo Mode after you turn on the
camera. When the camera is in Photo Mode, press the Shutter button to take a photo. - Time Lapse Photo Mode
In this mode, when you press the Shutter button, the camera will take a series of photos at the set interval. This mode is suitable for taking photos in changeable scenes. - Wifi Mode
When Wifi is turned on, the camera will enter Wifi mode and display the Wifi information.
What parameters can be adjusted in the Video modes?
- Video Resolution
4K 60fps, 4K 30fps, 2.7K 60fps, 2.7K 30fps, 1080P 120fps, 1080P 60fps, 1080P 30fps, 720P 240fps, 720P 120fps, 720P 60fps (Default setting is 4K 60fps)
This camera is capable of recording video up to 4K60fps, with higher resolution offering greater clarity and detail due to the increased number of pixels. However, higher-resolution video also results in larger file sizes. - Image Stabilization: On/Off (Default setting is Off)
Electronic Image Stabilization (EIS2.0) can efficiently smooth out the lens shakes, resulting in smooth and clear videos. This feature is ideal for use in capturing scenes involving activities like riding, skating, and handheld use. - Loop Recording: Unlimited/2 Min/3 Min/5 Min (Default setting is Unlimited)
This option allows you to set the length of videos captured in Loop Recording mode. For instance, if you set Loop Recording to "3Min", the camera will save videos every 3 minutes. When the memory is full, new video files will overwrite the old ones to ensure continuous recording. - Time Lapse Interval: Off/1S /3S /5S /10S /30S /1 Min (Default setting is Off)
This option enables you to specify the frequency at which the video frames are captured and compiled. The camera will capture a series of videos at a set interval, making it ideal for taking photos in dynamic or changing scenes, such as clouds, stars, sunsets, and more. - Time Lapse Duration: Unlimited/5 Min/10 Min/15 Min/20 Min/30 Min/60 Min (Default setting is Unlimited)
This option enables you to specify the frequency at which the video frames are captured and compiled. The camera will automatically stop recording after the set duration. - Slow Motion Movie
On/Off (Default setting is Off)
You can choose the resolution and zoom level before you create slow-motion movies. When Slow Motion is enabled, the camera can record video at a higher frame rate and then play it back at a lower speed, typically 30 frames per second. - Fast Motion Movie: Off/2x/4x/6x/10x/15x (Default setting is Off)
You can choose the resolution and zoom level before recording fast-motion videos. In Fast Motion mode, the camera will take a series of photos or video frames at the set interval and then compile them into a single video clip. - Wind Noise Reduction: On/Off (Default setting is Off)
When Wind Noise Reduction is enabled, the noise will be lowered to an acceptable level, allowing for better video quality. - Microphone: Internal/External (Default setting is Internal)
You have the option to select either a built-in microphone or an external one. To use an external microphone for better sound quality, select the “External” option first. Then, connect a compatible external microphone to the camera’s USB port. - Angle: Wide/Medium/Narrow (Default setting is Wide)
The angle refers to how much of the scene can be captured through the camera lens. A wide angle captures the largest amount of the scene, while narrow angle captures the least. - Sound Record: On/Off (Default setting is On)
Turn on Sound Record, the camera will record audio during video recording. - Auto Low Light: On/Off (Default setting is Off)
Auto Low Light mode will automatically adjust settings according to lighting conditions to achieve the best low-light performance. Even if you move back and forth between bright and dark environments, you do not need to manually adjust the camera settings. - Drive Mode: On/Off (Default setting is Off)
In this mode, the camera will automatically record video and save the video file when you connect it to the cigarette lighter, and start your car engine. - Video Scene Mode: Manual/Water/Riding/Winter/Night (Default setting is Manual)
What parameters can be adjusted in the Photo modes?
- Photo Resolution: 20MP/16MP/12MP/10MP/8MP/5MP (Default setting is 20MP)
This camera is capable of capturing 20MP photos, with higher resolution offering greater clarity and detail due to the increased number of pixels. However, higher-resolution photo also results in larger file sizes. - Angle: Wide/Medium/Narrow (Default setting is Wide)
The angle refers to how much of the scene can be captured through the camera lens. The wide angle captures the largest amount of the scene, while Narrow-angle captures the least. - ISO: Auto/100/200/400/800/1600/3200 (Default setting is Auto)
ISO determines the camera’s sensitivity to light and creates a trade-off between brightness and resulting image noise. Image noise refers to the degree of graininess in the image. In low light, higher ISO values result in brighter images, but with greater image noise. Lower values result in lower image noise, but darker images. - Time Lapse Interval: Unlimited/3S/5S/10S/30S/1 Min (Default setting is Unlimited)
This option allows you to specify the frequency at which photos are captured and compiled in Time Lapse Photo mode. The camera will then take a series of photos at the set interval. - Time Lapse Duration
This option lets you specify the frequency at which the photo frames are captured and compiled. The camera will automatically stop capturing after the set duration. - Night Lapse: On/Off (Default setting is Off)
Night Lapse is made to capture time-lapse videos in dark and low-light environments. It automatically adjusts the shutter speed to let in more light and picks the interval that will give you the best result. - Burst Photo: Off/3 shots/7 shots/15 shots/30 shots (Default setting is Off)
This option sets the number of photos to be taken in Burst Photo mode. It's perfect for capturing fast-moving activities. You can choose to set it to Off. - Delay Timer: Off/Delay 3s/Delay 5s/Delay 10s/Delay 20s (Default setting is Off)
This option lets you specify the duration of the countdown before the camera takes a photo. The camera will initiate the timer upon pressing the shutter release button and capture a photo automatically once the countdown concludes. - Long Exposure: Off/1S/ 2S/ 5S/ 8S/ 30S/ 1 Min (Default setting is Off)
Long exposures are easiest to accomplish in low-light conditions but can be done in brighter light using neutral-density filters or specially designed-cameras. - DNG: On/Off (Default setting is Off)
DNG means Digital Negative. A DNG file stores uncompressed image data on your camera. A DNG file created with this camera does not need to be edited in PhotoShop. - Photo Scene Mode
Manual/Indoor/Outdoor/Portrait/Landscape/Night (Default setting is Manual)
